2005-06-13 06:09:06 PM
cppbuilder17
Bob Gonder < XXXX@XXXXX.COM >wrote:
(1 == sizeof(char) <= sizeof(short) <= sizeof(int) <= sizeof(long))
Ideally, int would go to 64 if that was the natural word size on the
system (i.e. the fastest integral type). On the other hand, it would
finally open up an inability to name certain sized integers.
Alan Bellingham
--
ACCU Conference 2006 - 19-22 April, Randolph Hotel, Oxford, UK


Alan Bellingham wrote:
Some bureaucratic committee must have dreamed that up.
I seem to remember this topic was discussed before.
But I can't find(google) it.
There has to be 64bit compilers out by now (Gnu?)...what do they use?


Bob Gonder wrote:
It encapsulates the problem. If the compiler was being
misdirected by any of the statements/declarations, I hope
I could then weave the correction into the actual code.
If we're testing for a FIXNUM using a macro throughout,
we can't suddenly not use it here and there without
losing integrity.
But I tried it ...
if ((unsigned char)a & (unsigned char)b & 1) {
... and it didn't have any influence on the broken pointer.
I can prove that I thought of that (post from last week):
blade.nagaokaut.ac.jp/cgi-bin/vframe.rb/ruby/ruby-core/5152?4925-5195+split-mode-vertical
The bccwin build team are not seeing the problem because
bcc5.5 has a default switch of /v (degugging) which
causes out-of-line expansions (inlines are not inlined -
they're call'd). Seems like an odd default, IMHO.
I'm not sure they're aware of that, yet.
I can understand their reluctance to replace a valid
line with a bogus one just to keep one user happy.
You know, someone might look at it and say:
"Whoa - doesn't this guy know what && is for?"
In the absence of an elegant solution, an #if with
a comment may be more acceptable but I expect I'll
just get ignored. I think I'd do the same.
Thanks also to those who looked and would have posted
if they could have offered a way round this.
It's great that you're all here in times of need :-)
Cheers,
daz


{smallsort}

Bob Gonder < XXXX@XXXXX.COM >wrote:
No, if you want something /whose size is guaranteed/, then you want to
state what the size is. e.g, intt_8, uintt_32.
The guarantee in the standard is effectively that long is the longest
type available, and that int is the fastest type available. Those are
valuable guarantees, and I for one would not want to see them being
broken.
Alan Bellingham
--
Me <url:mailto: XXXX@XXXXX.COM ><url:www.doughnut.demon.co.uk/>
ACCU - C, C++ and Java programming <url:accu.org/>
The 2004 Discworld Convention <url:dwcon.org/>


Bob Gonder wrote:
There's a useful table ( ILP32 Versus LP64 ) here:
www.devx.com/cplus/Article/27510/1954
which shows promotions for pointer, 'long' and 'long double'
'int' remains 32-bit
daz


"dazbee" < XXXX@XXXXX.COM >wrote:
(I wonder whether there /is/ any speed difference between the 32 and 64
bit types.)
And it was int8_t, uint32_t, etc. that I was thinking of.
Alan Bellingham
--
Me <url:mailto: XXXX@XXXXX.COM ><url:www.doughnut.demon.co.uk/>
ACCU - C, C++ and Java programming <url:accu.org/>
The 2004 Discworld Convention <url:dwcon.org/>


daz,
On Sat, 11 Jun 2005 22:17:43 +0100, "dazbee" < XXXX@XXXXX.COM >
wrote:
You said you've come up with some workarounds. Here are four
suggestions, at the risk of duplicating what you know already:
1. Turn the optimization off just for the in_type function:
#pragma option -Od
__inline int in_type(VALUE obj)
{
if ((obj & 0xff)==5) return 100;
return ((struct st_type*)(obj))->flags & 0x3f;
}
#pragma option -O2
2. Cast the constant 0xff:
__inline int in_type(VALUE obj)
{
if ((obj & (VALUE)0xff)==5) return 100;
return ((struct st_type*)(obj))->flags & 0x3f;
}
3. Use a pointer to obj instead of a copy of obj (or C's version of
using an argument by reference instead of by value) with the calls
adjusted accordingly (in_type(&a), in_type(&b)):
__inline int in_type(VALUE *obj)
{
if ((*obj & 0xff)==5) return 100;
return ((struct st_type*)(*obj))->flags & 0x3f;
}
4. Advance the cast to st_type*:
__inline int in_type(VALUE obj)
{
struct st_type *stobj = (struct st_type*)(obj) ;
if ((obj & 0xff)==5) return 100;
return stobj->flags & 0x3f;
}
This last one just grabs the value of obj before it may still get
mangled by and-ing with 0xFF.
By the way, the successful output on my machine is
Success ! (version 551)
All of this is done with BCB5 Patch 1, operating from the command
line.
It may be worthwhile to remember that traditionally optimization in/by
compilers is always accompanied by compromises, sacrificing a subtle
thing here or there that is legal within the ANSI (or other relvant)
standard. In this case, the failure may be unintentional rather than
deliberate.
Cheers, Jochen
hjtrost at microfab dot com
Nil nimium studeo, Caesar, tibi velle placere,
nec scire ut an sis albus an ater homo.
Catullus


Alan Bellingham wrote:
calculations where the promotion might take an extra clock.
(And, here I've been using for(int x;;) when I didn't really care
about x, but used it for indexing. Shoulda been using long, but long
indexes are wrong for 16bit code. That may be why I thought int should
move up: It's been the index of choice, now not so much.)


Hans-Jochen Trost wrote:
(Sorry - I was close to thinking that the thread had dried up)
I wanted to wrap the problem statement in sort2 with a #pragma
but read that /O could be changed only between functions -
which makes sense now I know that a function is the fundamental
unit of optimisation.
Some points arising: -
a) This solution generates equivalent code to that
generated by wrapping sort2 with the same #pragmas. Hmm.
b) Using this pair instead:
#pragma option push /Od
#pragma option pop
around sort2 has the same action as a), but
around the __inline has no effect at all.
I sense you may have tried push/pop and discovered the same.
Did you leave your #pragmas in - or did I{*word*222}up ?
.asm from these alternatives. Enormous variation.
This one *totally* wouldn't be accepted, though :-))
(several hundred macro arguments involved)
Actually there's not much overhead here when the intermediate
variable is assigned a register.

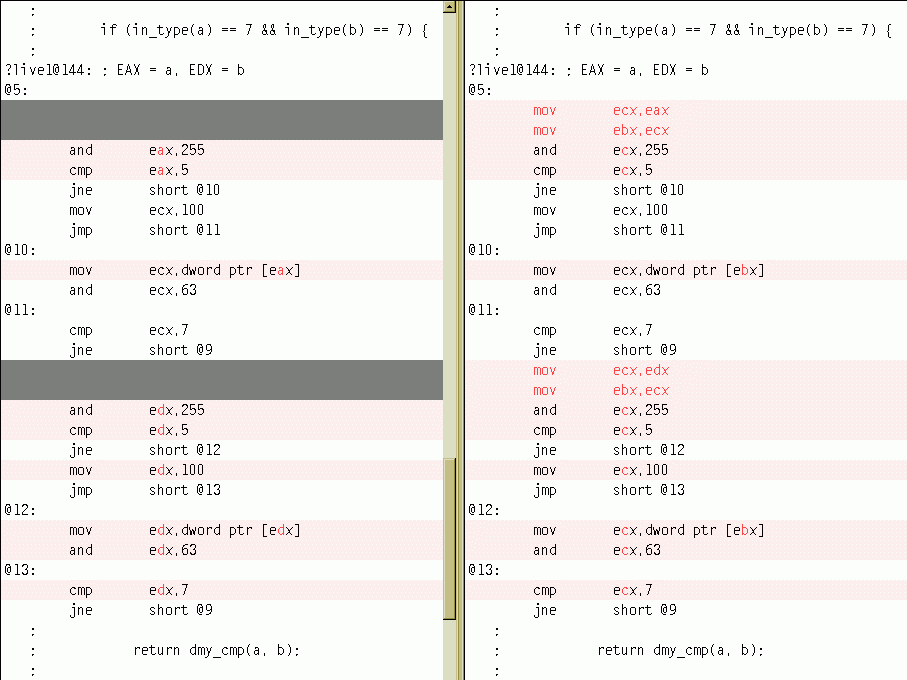

Here's a clip of the .asm (before ->after) files -
www.d10.karoo.net/misc/bcc_asm.gif
(nothing else on that site, btw)
Probably the best of your submissions - and no duplication of my
experimenting -- I don't recall trying any of those.
-------------
Another "fix" I forgot to mention is:
volatile VALUE a = *ap, b = *bp; // at top of sort2
('volatile' prevents use of register variables -
- designed for another purpose, but usable here -
- folks, you should've told me that, even though I knew ;-)
-------------
those annoying bugs because there are a good few workarounds ...
... even more now :-).
Kept me so engaged, I forgot to go to bed !
daz


daz
On Tue, 14 Jun 2005 08:44:33 +0100, "dazbee" < XXXX@XXXXX.COM >
wrote:
[snip]
graphics forum (hint, hint) ...
[snip]
you would never dare to compile without /O2, so I took the straight
route of disabling optimization and forcing /O2 on you at the end.
Also, as the (obj & 0xff) piece in in_type seems to be at the core of
all your trouble, I feel that messing with sort2 is not exactly
desirable. The best solutions for you will act strictly on or in
in_type with no apparent side effects anywhere else, outside of the
bug being fixed, of course.
have left those pragmas in.
My serious close encounters with assembler occurred way back in times
of yore, on a Telefunken TR440 in the early 1970s and IBM mainframes
in the late 70s and first half of the 80s.
this is exactly the reason to try to find different workarounds. The
changes outside of in_type are conceptually an undesirable idea, just
like wrapping sort2 above instead of in_type where the bug really is.
function is extended with a "real" use of obj as an integer after this
detrimental and-ing, the optimizer might be coaxed into not
misbehaving - remember the senseless add-in lines that you found to do
the trick, too. By the way, I have seen source code (Fortran, not C)
way back when where this was done also - and there was a comment
nearby explaining that a silly useles instruction was there only to
coax the optimizer or other compiler section into getting things
right.
advanced training on the job, and did it right there =8^O
Cheers, Jochen
hjtrost at microfab dot com
Nil nimium studeo, Caesar, tibi velle placere,
nec scire ut an sis albus an ater homo.
Catullus


Hans-Jochen Trost wrote:
www.btinternet.com/~btketman/tutpage.html
(Assembler interpreter !)
(Shall resist talking about the days of yore ;)
Hope you get your graphics answer.
daz


dazbee < XXXX@XXXXX.COM >wrote:
because you're take a value that was never (as far as the posted
source shows) the address of an actual object. You cast this to a
pointer, and expect the resulting pointer to be valid.
The compiler cannot possibly have a bug here, because it's undefined
behaviour we're talking about --- and that means whatever it may do,
including mailing a complaint about your code style to your boss, or
exploding your machine, is correct.
The C and C++ languages both offer the concept of a "union". And
guess what---there's a reason for its existence. It's code trying to
do what your code does, but *without* causing undefined behaviour.
--
Hans-Bernhard Broeker ( XXXX@XXXXX.COM )
Even if all the snow were burnt, ashes would remain.


Hans-Bernhard Broeker < XXXX@XXXXX.COM >wrote:
undefined behaviour.
Alan Bellingham
--
ACCU Conference 2006 - 19-22 April, Randolph Hotel, Oxford, UK


Hans-Bernhard,
On 15 Jun 2005 03:49:44 -0700, Hans-Bernhard Broeker
< XXXX@XXXXX.COM >wrote:
[snip]
st_type into his VALUE type variable (which is typedef'ed to be
unsigned long):
psa = (VALUE)&sta; psb = (VALUE)&stb ;
and passes these by reference into his sort2 function. There he
prepares explicit copies of the VALUE type data:
VALUE a = *ap, b = *bp ;
and passes these to his in_type function. There he ends up converting
the VALUE data back to the same type of pointer he started off with:
(struct st_type)(obj)->...
There is nothing undefined in this chain of assignments, and the
strategy is also legal, see Kernighan and Ritchie, "The C Programming
Language," 2nd edition, section A6.6, pp.199:
"A pointer may be converted to an integral type large enough to hold
it; the required size is implementation-dependent. The mapping
function is also implementation-dependent.
"An object of integral type may be explicitly converted to a pointer.
The mapping always carries a sufficiently wide integer converted from
a pointer back to the same pointer, but is otherwise
implementation-dependent."
daz's code adheres to these rules strictly. The Borland compiler
thinks the whole source code does not violate any ANSI standard that
it is able to check.
As the analyses of the assembler code produced by the compiler has
shown, the "obj" argument value gets loaded into a register, and-ed
with 0xFF and due to optimization continues to be used from that
register thereafter. That is the bug, and the compiler's optimization
strategy deserves the blame. Telling it to not optimize just the
in_type function provides a successful work-around.
Cheers, Jochen
hjtrost at microfab dot com
Nil nimium studeo, Caesar, tibi velle placere,
nec scire ut an sis albus an ater homo.
Catullus
